STEAM

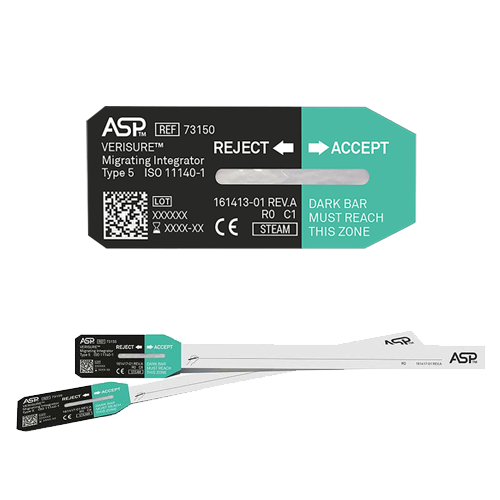

Moving Front Chemical Integrator (migrator) designed to monitor both dynamic-air removal (pre-vacuum) and gravity displacement steam sterilization processes between 118-138 °C. TYPE 5 Integrators respond to all critical process parameters, within a temperature range.
- Classification: FDA and ISO 11140-1 Type 5, MDR CE marked Class I
- Size: 52 mm x 21 mm
- Shelf Life: 5 years
*The VERISURE™ Steam Type 5 Migrating Integrator w/ Extender is intended to help with retrieving the indicator from pouch/packs and allows greater visibility in trays.
Product Name | Product Number | Packaging |
|---|---|---|
VERISURE™ Migrating Integrator | 73150 | 250 per bag / 2 bags per case |
VERISURE™ Steam Type 5 MI w/ Extender | 73155 | 100/bag, 2 bags per case |

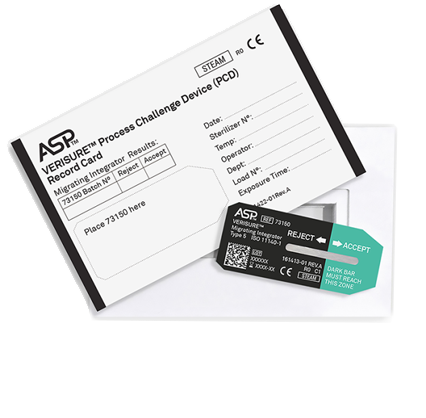

VERISURE™ Steam Type 5 Migrating Integrator/PCD simulates a load to be sterilized and poses a challenge to the sterilization process.
Used for monitoring of both of dynamic air removal steam sterilization processes at 132-135 °C ≥ 4 min. and gravity air displacement processes at 121 °C ≥ 30 min.
Pre-assembled package consists of:
- [1] VERISURE™ Steam Type 5 Migrating Integrator
- [1] PCD record card where sterilization information can be recorded
Product Name | Product Number | Packaging |
|---|---|---|
VERISURE™ Steam Type 5 Migrating Integrator / PCD | 73160 | 25/box, 1 box per case |

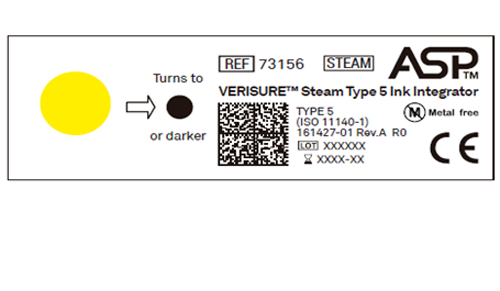

VERISURE™ Steam Type 5 Ink Integrator is designed to monitoring steam sterilization processes between 121°C and 135°C, ensuring an adequate control of the effectiveness of sterilization processes
- Size: 2.76” x 0.91” (70 mm x 23 mm)
- Single-use unique point chemical indicator that consist of paper strips printed with indicator ink.
- Indicators 100 % free of toxic heavy metals.
- Compliance: FDA and ISO 11140-1 Type 5.
- Shelf Life: 5 years
Product Name | Product Number | Packaging |
|---|---|---|
VERISURE™ Steam Type 5 Ink Integrator | 73156 | 200/bag; 2 bags/case |

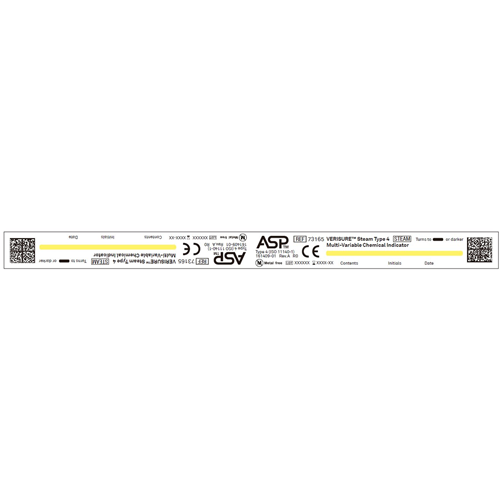

VERISURE™ Steam Type 4 Multi-Variable Chemical Indicator is designed to monitor steam sterilization processes within loads, ensuring an adequate exposure to the sterilizing agent during the sterilization process.
- Single-use chemical indicators that consist of one-side laminated punched paper double strips printed with indicator ink.
- Size: 7.87” x 0.59” (200 mm x 15 mm)
- Perforated at the center, can be easily separated to obtain a shorter indicator.
- Composition: Toxic heavy-metal free.
- Classification: FDA and ISO 11140-1 Type 4
- Shelf Life: 5 years
Product Name | Product Number | Packaging |
|---|---|---|
VERISURE™ Steam Type 4 Multi-Variable Chemical Indicator | 73165 | 500/bag; 2 bags/case |
H2O2

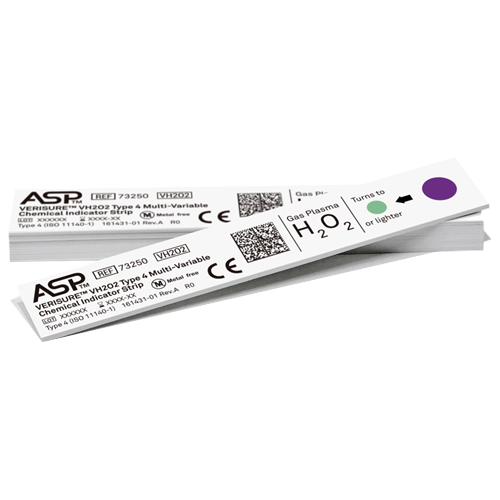

VERISURE™ VH2O2 Type 4 Multi-Variable Chemical Indicator Strip is designed to monitor plasma or vaporized hydrogen peroxide sterilization processes within loads, ensuring an adequate exposure to the sterilizing agent during the sterilization process.
It is the only VH2O2 Type 4 CI validated by ASP for STERRAD™ Sterilization Systems.
- Single-use chemical indicators that consist of plastic strips printed with indicator ink.
- Size: 4.13” x 0.71” (105 mm x 18 mm)
- Heavy metal free
- Stated Value (Endpoint condition): 50 °C (122° F), 6 minutes, 2.3 mg/l H2O2.
- Compliance: FDA / CE marked / ISO 11140-1 Type 4
- Shelf life: 5 years
Product Name | Product Number | Packaging |
|---|---|---|
VERISURE™ VH2O2 Type 4 Multi-Variable Chemical Indicator Strip | 73250 | 250/bag; 2 bags/case |
EtO

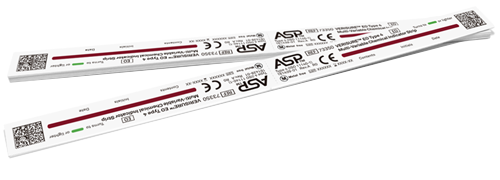

VERISURE™ EtO Type 4 Multi-Variable Chemical Indicator Strip is designed to monitor ethylene oxide sterilization processes within loads, ensuring an adequate exposure to the sterilizing agent during the sterilization process.
- Single-use chemical indicators that consist of punched paper double strips printed with indicator ink.
- Endpoint condition: 30 °C, 30 minutes, 600 mg/l EO, RH 60 %; 54 °C, 20 minutes, 600 mg/l EO, RH 60 %.
- Compliance: ISO 11140-1:2014 standard Type 4 and cleared by the FDA.
- Shelf life: 5 years
Product Name | Product Number | Packaging |
|---|---|---|
VERISURE™ EO Type 4 Multi-Variable Chemical Indicator Strip (200 x 15 mm) | 73350 | 500/bag; 2 bags/case |
